Bulletproof Aluminum Frames for Doors & Windows

Our rigorously tested ballistic aluminum framing is perfect for storefronts, interior doors, and windows that need to provide bulletproof protection while meeting modern aesthetic requirements. Aluminum frames can be an essential piece of your comprehensive security plan, ensuring the efficacy of ballistic glass, windows, and doors and meeting your style standards.

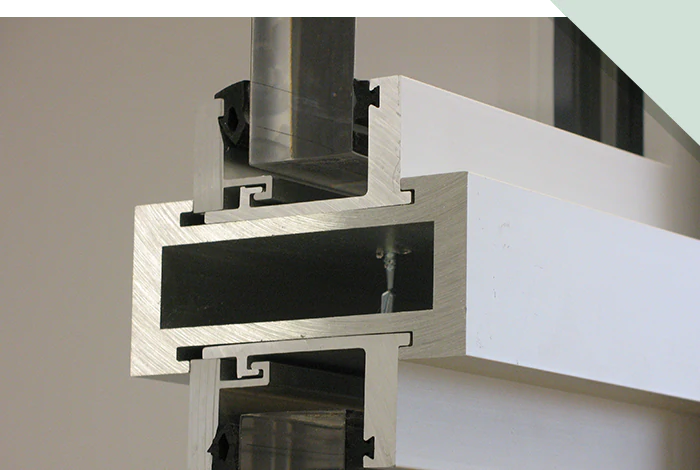

Aluminum Framing

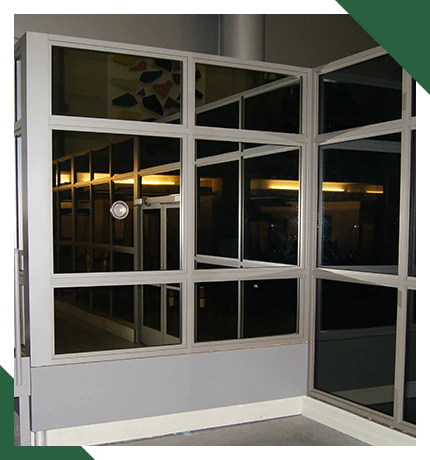

aluminum framing installation

Aluminum Storefront Frames

The entrance to your building is where you make your first impression with customers or visitors, and your doors and windows should provide a welcoming sense of safety to your clientele. Aluminum framing is popular with many industries for its strong appearance and sleek design, and our frames offer the additional benefit of bulletproof protection. Easily incorporated into either doors or windows, you can create a cohesive, inviting entryway with these ballistic barriers.

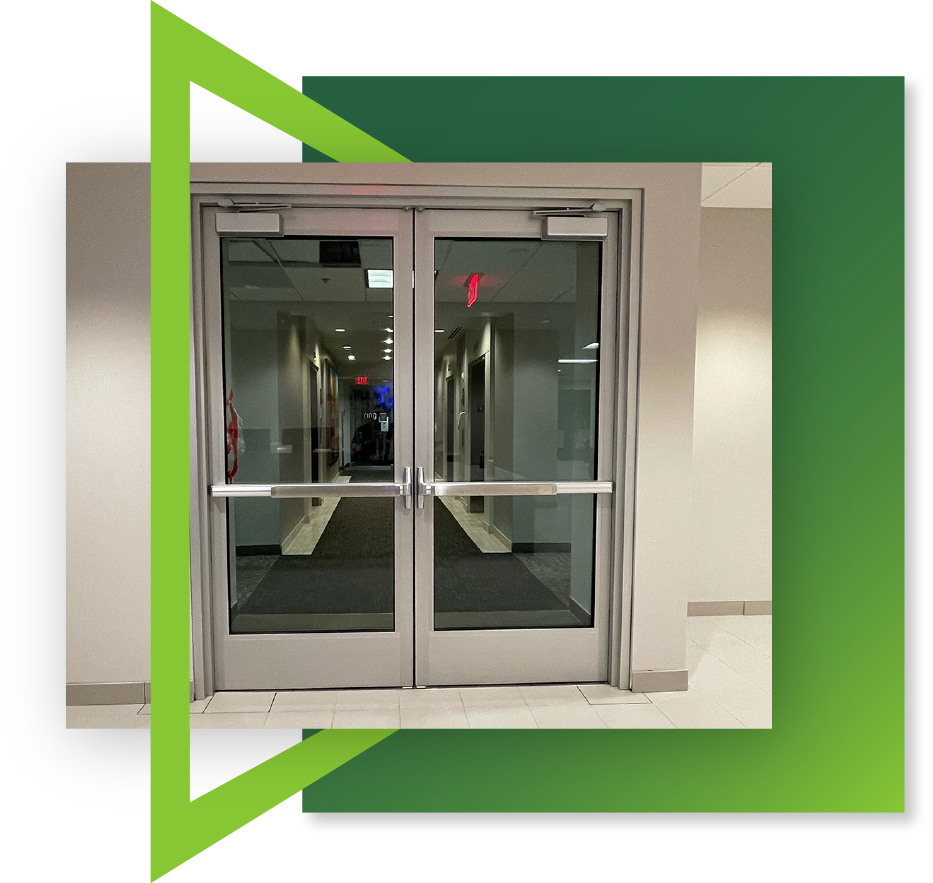

Aluminum Window & Door Frames

Our bulletproof aluminum frames will complement any interior or exterior windows and doors in your facility. Each frame may be paired with several bulletproof glass options, your TSS consultant can help you determine which combination of frame and glazing will provide the perfect blend of safety and style. By including these elements in your system design, you enhance your team’s ability to weather any emergency.

Aluminum Frame Options

All aluminum frames are completed with a clear satin or dark bronze anodized finish, or you may request a custom paint color to match your existing building aesthetics. We can match any color with Kynar coating, a specialized product that adds durability to aluminum materials and protects against aging. Kynar coating is also available in a fluorosurfactant-free option that is environmentally-friendly and accepted in states with increased regulations for paint products (including California). Powder coating and other anodized finishes are also available to customize your frame.

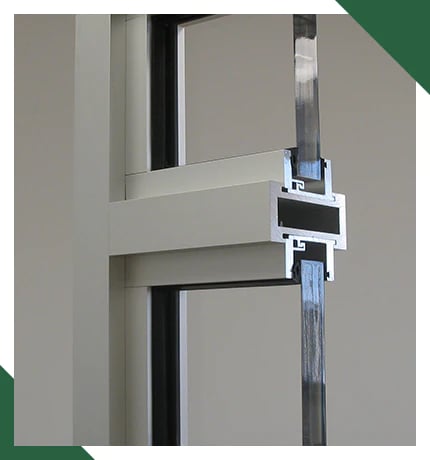

TSS-BL1.75 Framing System

TSS-BL1.75 Framing System

Protection Level: 1-3
The TSS-BL1.75 bullet-resistant aluminum frame is designed to accept bullet-resistant glazing (acrylic, laminated polycarbonate or glass-clad polycarbonate) materials from 3/4″ to 1-3/8″ thick. The extruded aluminum is UL certified to defeat ballistic assaults up to a .44 magnum. Available in a clear satin or dark bronze anodized along with custom paint color finishes upon request.

TSS-BL1.75 Ballistic Framing CAD
TSS-BL1.75 Ballistic Framing Detail
TSS-BL1.75 Ballistic Framing Datasheet
TSS-BL1.75 Ballistic Framing Specification

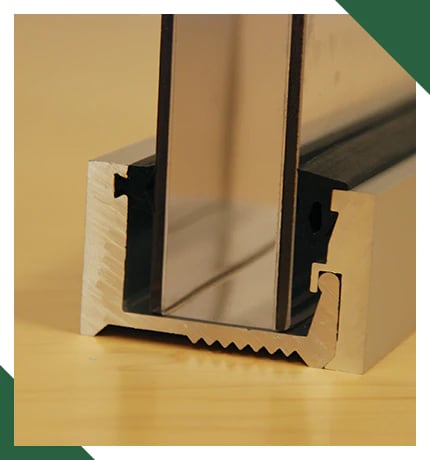

TSS-BL2.5 Framing System

TSS-BL2.5 Framing System

Protection Level: 1-3
The TSS-BL2.5 bullet-resistant aluminum channel is designed to accept bullet-resistant glazing (acrylic, laminated polycarbonate, or glass clad polycarbonate) materials from ¾” to 1⅜” thick in a fixed opening. The extruded aluminum is UL certified to defeat ballistic assaults up to a .44 magnum. Available in a clear satin or dark bronze anodized along with custom paint color finishes upon request.

TSS-BL2.5 Ballistic Framing CAD
TSS-BL2.5 Ballistic Framing Detail
TSS-BL2.5 Ballistic Framing Datasheet
TSS-BL2.5 Ballistic Framing Specification

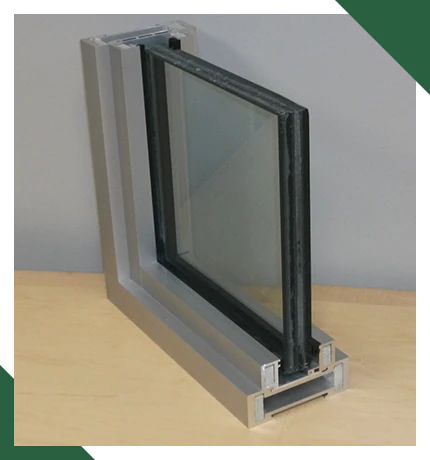

TSS-BL5.5 Framing System

TSS-BL5.5 Framing System

Protection Level: 1-8
The TSS-BL5.5 bullet-resistant aluminum frame is designed to accept bullet-resistant glazing (glass clad polycarbonate) materials from 1¼” to 2½” thick. The extruded aluminum is UL certified to defeat ballistic assaults up to UL Level 8. Available in a clear satin or dark bronze anodized along with custom paint color finishes upon request.

TSS-BL5.5 Ballistic Framing CAD
TSS-BL5.5 Ballistic Framing Detail
TSS-BL5.5 Ballistic Framing Datasheet
TSS-BL5.5 Ballistic Framing Specification

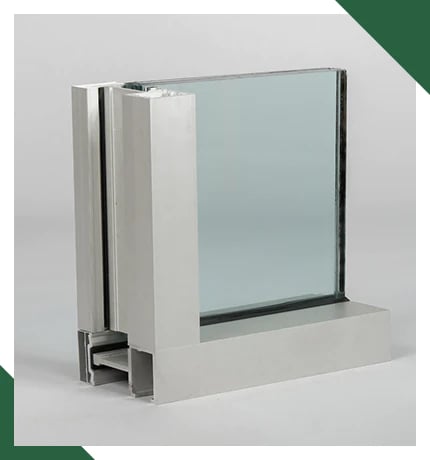

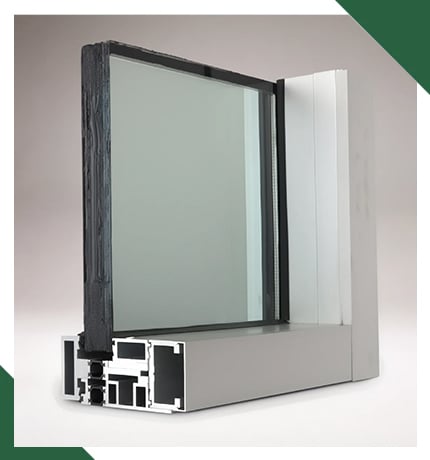

TSS-650 Thermal Bullet-Resistant Framing

TSS-650 Thermal Framing System

Protection Level: 1-8
The TSS-650 Thermal bullet-resistant aluminum frame is designed to accept bullet-resistant glazing (glass clad polycarbonate) materials from 1¼″ to 2½″ thick. The extruded aluminum is UL certified to defeat ballistic assaults up to a 7.62 mm caliber projectile (up to UL Level 8). Available in a clear satin or dark bronze anodized along with custom paint color finishes upon request.

TSS-650 Thermal Bullet-Resistant Framing CAD
TSS-650 Thermal Bullet-Resistant Framing Detail
TSS-650 Thermal Bullet-Resistant Framing Datasheet
TSS-650 Thermal Bullet-Resistant Framing Specification

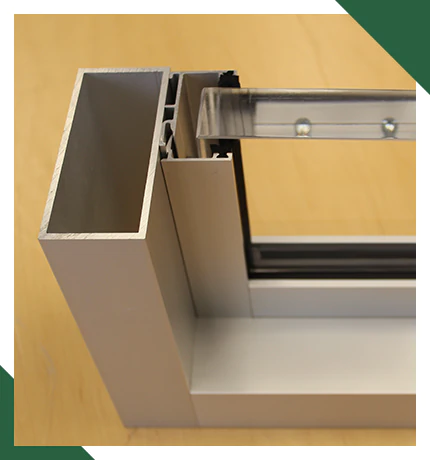

Non-Rated Framing

Non-RATED Framing System

Protection Level: N/A
The Non-Rated Framing is designed to accept bullet-resistant glazing (acrylic, laminated polycarbonate, or glass-clad polycarbonate) from ¾” to 1⅜” thick. Available in a clear satin or dark bronze anodized along with custom paint color finishes upon request.

Non-Secure Framing CAD
Non-Secure Framing Detail
Non-Secure Framing Specification

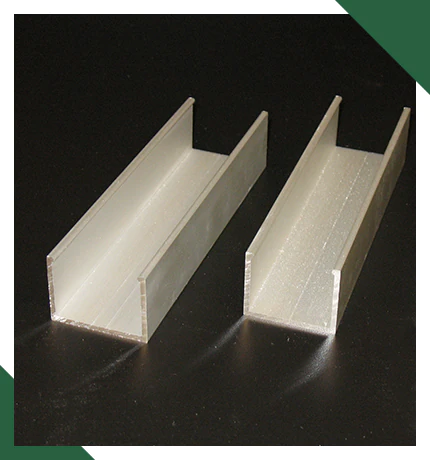

Non-Rated Aluminum U-Channel

Non-Rated Aluminum U-Channel

Protection Level: N/A
The TSS Non-Rated Aluminum U Channel is designed to accept bullet-resistant glazing materials (acrylic, laminated polycarbonate or glass clad polycarbonate) from ¾” to 1⅜” thick. TSS Non-Rated Channel is typically used for windows in Level 1 or 2 applications. Available in a clear satin, dark bronze anodized aluminum, or custom paint finish.

CAD Drawings
Levels 1 & 3: Non-Rated Aluminum U Channel CAD
Level 2: Non-Rated Aluminum U Channel CAD

Detail Drawings
Levels 1 & 3: Non-Rated Aluminum U Channel Detail
Level 2: Non-Rated Aluminum U Channel Detail

Datasheets
Levels 1 & 3: Non-Rated Aluminum U Channel Datasheet
Level 2: Non-Rated Aluminum U Channel Datasheet

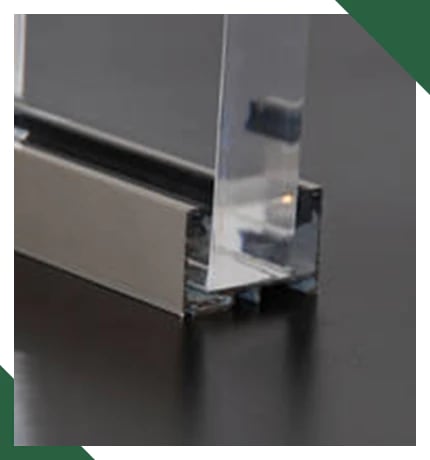

2-Piece Channel

2-Piece Channel

Protection Level: N/A
The TSS Non-Rated Aluminum 2-Piece Channel is designed to accept bullet-resistant glazing acrylic, laminated polycarbonate, or glass clad polycarbonate materials from ¾” to 1⅜” in a fixed opening. The smaller profile of the channel allows for a larger viewing area. TSS Non-Rated Aluminum 2-Piece Channel is typically used for windows with UL Levels 1 or 2. Available in a clear satin, dark bronze anodized aluminum or custom paint finish.

2-Piece Channel CAD
2-Piece Channel Detail
2-Piece Channel Datasheet
