Bulletproof Hollow Metal Frame

Our bullet-resistant hollow metal frame is constructed of 16-gauge cold rolled steel and is typically used to secure drywall or masonry openings. It comes available in multiple frame depths to allow for maximum customization and pairing with ballistic glazing. The hollow design allows your barrier to “capture” and retain a speeding bullet, lessening the potential of a random injury or lateral penetration. Most businesses choose this framing to match an existing aesthetic in their facility while reinforcing ballistic barriers.

Bullet-Resistant Framing - Hollow Metal

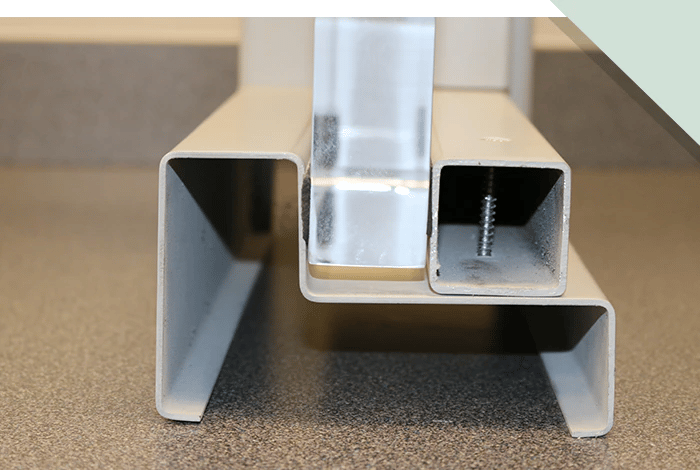

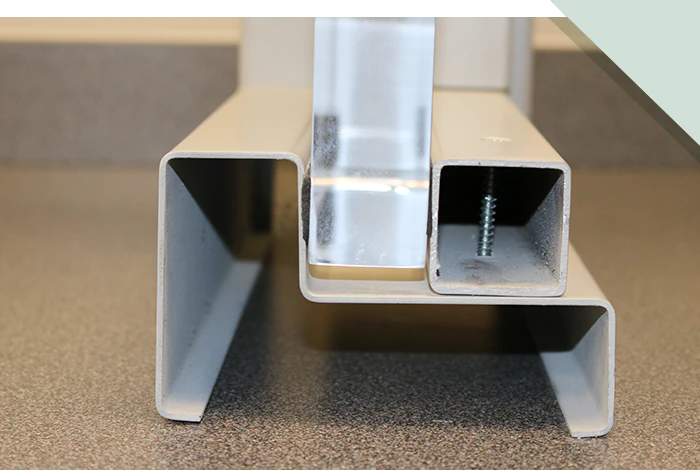

Hollow Metal Framing Example

Hollow Frame Uses

These frames are typically used to seal masonry or drywall openings. Because it is nearly impossible to pack the channel opening, channels for hollow metal framing systems are not tested to UL bulletproof standards. They can, however, be reinforced with ballistic fiberglass, or TSS armor plates to achieve a higher level of protection. By integrating this solution into your security system design from the beginning, you ensure your ballistic barriers work as intended and save yourself the headache of retrofitting frames down the road.

Design

Each 16-gauge hollow steel frame comes in a standard prime-painted gray finish and can be paired with ¾” to 2 5/16” thick bulletproof glazing.

Product Specifications

Bullet-Resistant Framing System - Hollow Metal CAD
Bullet-Resistant Framing System - Hollow Metal Detail
Bullet-Resistant Framing System - Hollow Metal Datasheet
Bullet-Resistant Framing System - Hollow Metal Specification
